The iRoof Catalog

Redefining
Roofing Excellence

iRoof delivers the performance that Sri Lankan homeowners and builders trust—combining traditional appeal with advanced material science.

PRODUCTS

iRoof Max

උසස්ම ASA සහ UPVC අමුද්රව්ය භාවිතයෙන් නිපදවන, මෙරටින් පිටරටට යන, ලේයර හතරේ සුපිරි නිෂ්පාදනය, i-Roof Max

Standard ReferenceGrade-A100

Engineering Advantages

වැස්සේ දී අවම ශබ්දය සහිත සෙවිලි තහඩු වීම.

සැකිල්ල සදහා අඩු වියදම.

සෞඛ්යයට හානිකර පිළිකාකාරක ද්රව්යය කිසිවක් අඩංගු නැති සෙවිලි තහඩු වීම.

White Bottom ලේයරය නිසා නිවස ඇතුලත අලංකාර පෙනුමක්.

මල නොබැඳෙන සෙවිලි තහඩු වීම.

රස්නය අවම කරන සෙවිලි තහඩු වීම.

පළල අගල් 41 සහ දිග ප්රමාණ 10කින් ලබාගත හැකි වීම.

දිගු කල් පවතින වර්ණය.

ලේයර් 4කින් සමන්විත නිසා ශක්තියෙන් ඉහල සෙවිලි තහඩු වීම.

LG ASA ලේයරය නිසා දිගු කල් පැවැත්ම.

Technical Specification Sheet

Thickness2.8 (+/-0.1) mm
Length5'9" Feet to 20'10" Feet
Full Width3 Feet 5 Inches
Covering Width3 Feet 1.5 Inches
Gap Between Purlin26 Inches
Weight480g/sqft
Layers4 layers
iRoof Max Autumn Red
iRoof Max
ELITEARCHITECTURAL

iRoof Max Autumn Red

iRoof Max Brick Red
iRoof Max
DURABLEVIBRANT

iRoof Max Brick Red

iRoof Max Forest Green
iRoof Max
ECO STABLEFOREST SHIELD

iRoof Max Forest Green

iRoof Max Ocean Blue
iRoof Max
MARINE READYISO CERTIFIED

iRoof Max Ocean Blue

The iRoof Standard

Engineering
Beyond the Edge

Every iRoof sheet passes through 14 stages of technical validation. We don't just meet the standards; we define them for the Sri Lankan environment.

Hyper-Salinity Resistance Protocols
Dynamic Heat Defraction (ASA Coating)
Grade 5 Cyclone/Tornado Resilience
Non-Oxidative Core Technology
Technical Detail

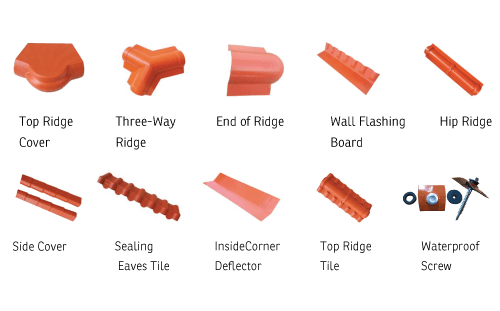

Accessories

iRoof Accessories

Layers

iRoof Layers

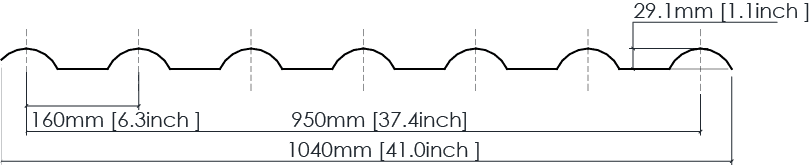

Side Lap Details

Side Lap Details

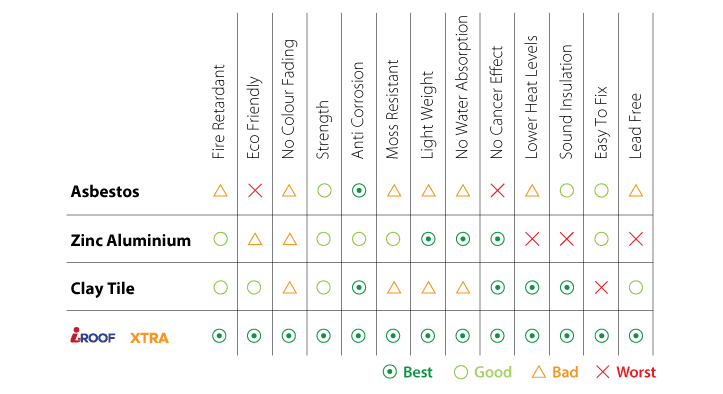

Comparison

Product Comparison

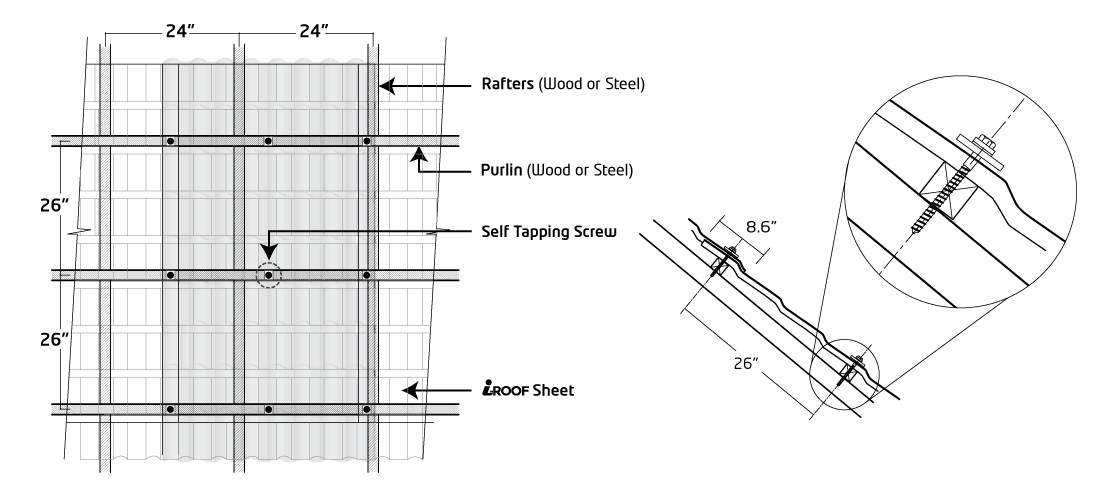

Installation Instructions

Installation Instructions

Ready to install your iRoof?

Download current technical instructions (PDF)

Download Now
